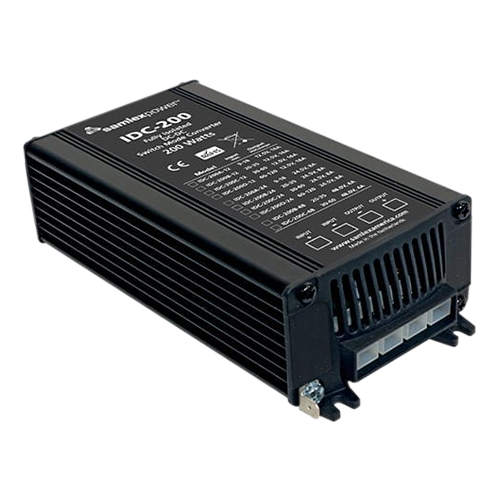

Samlex IDC-200B-24 200Watt Fully Isolated DC-DC Converter (Input: 20-35VDC / Output: 24VDC)

Samlex IDC-200B-24 200Watt Fully Isolated DC-DC Converter (Input: 20-35VDC / Output: 24VDC)

Manufacturer Part#: IDC-200B-24

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200B-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4-inch push-on flat blade “quick disconnect” connectors. IDC-200B-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
